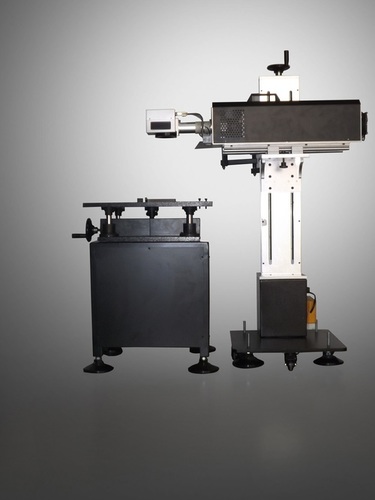

Laser Diamond Sawing System

Laser Diamond Sawing System
Laser Diamond Sawing System
Product Code : SLT 01
Brand Name : SWASTIK
Product Description

Our company is one of the manufacturers and suppliers of Laser Diamond Sawing / Bruting Systems, that are highly efficient  and reliable. It acquires an unmistakable picture with respect to the weight, shape, and clarity of the proposed cleaned jewel. Particular programming gives the administrator choices to choose the state of the precious stone, contingent upon disposal of in-corporations, and presentations its fairly estimated worth onscreen. These Laser Diamond Sawing / Bruting Systems deal with the sawing, forming, blocking, and 4-in-1 handle and cut pre-arranged unpleasant precious stones. The last outcome is constantly apparent contrasted with what one gets from the ordinary strategy for precious stone arranging and cutting.

Product Features.:

  • Low Breakage Rate
  • Low Power Consumption
  • Low Weight Loss
  • High Production Rate
  • Programmed RF Mode
  • Phenomenal Bruiting and Sawing surface
  • Extraordinary Software for TSS Cutting
  • Programmed Parameter as indicated by laser control
  • Long haul upkeep free operation
  • Strong casing structure for most reduced vibration
  • Propelled information section for next installation
  • Changing of parameters at ongoing is conceivable.

Technical Specification:

Laser

DPSS Laser

Fiber Laser

Lamp-Pumped Laser

Laser Source

DPSS Q Switched YAG laser

Multi-Diode Pumped

Krypton Lamp

Laser power

75 W

10W/20W

80W

Wavelength

1064 nm

1064 nm

1064 nm

Beam quality M2

<2.5

<1.5

<8

Diode Life/ Lamp Life

10000 hours

100000 hours

300-500 hours

Repeat Rate

100 to 50000 Hz

200-100000Hz

100 to30000HZ

Repeatability

0.020 mm

+0.02mm

+0.02mm

Min line width

0.015mm

0.008mm

0.018mm

Electrical

Electrical Connection

220+10% V AC, Single Phase

220V+10% V AC/ 50Hz / 7A

220V+10% V AC /50HZ/19A

Power Consumption

<1.4 KVA

<1.4 KVA

<7.5

Ambient Temperature

25oC-28oC

10 oC to 35oC

25oC-28oC

Cooling

Pure Water

Air cooling

Pure Water

Dimension

Weight

95 to 105 Kg

150 Kg

150 Kg

Size ( in mm )

800 x 700 x 1100

535 x 435 x 710

1300 x 700 x 1100



Trade Information
  • Main Domestic Market
  • Dadra and Nagar Haveli, Daman and Diu, Gujarat, Madhya Pradesh, Rajasthan
